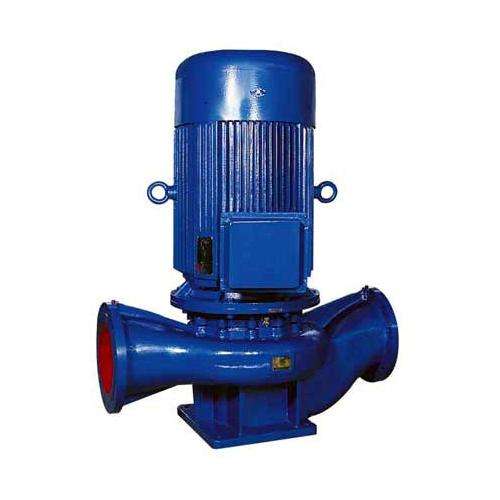

G型屏蔽式管道泵產品概述
G型屏蔽式管道泵吸收了國際上屏蔽泵設計及制造的先進技術,將電機的屏蔽技術應用于流體輸送領域,為適應國內市場需求而最新推出的系列化新產品。PBG型屏蔽式管道泵系列性能參數基本符合國際標準IS02858及國家標準JB/T6878.2-93的規定。具有設計規范,通用化程度高,結構合理,性能穩定,運轉低噪音,無振動等顯著特點,是替代常規臥式離心泵,立式管道泵的理想產品。全系列共67個品種,184個規格,其性能范圍:流量6.3～1080m3/h,揚程12.5～125m,配用電機功率0.37～160kW,轉速1450r/min和2900r/min。
G型屏蔽式管道泵產品特點
1、泵結構緊湊，機泵一體化，體積小。其立式結構具有安裝占地面積小，運行平穩，安裝無需調整。
2、泵進出口設計成規格相同法蘭，且位于同一中心線上，可象閥門一樣直接安裝在管路上，且中心低，便于管道布置，安裝特別方便。
3、泵與電機同軸，軸向尺寸短，使泵運行更加平穩，噪音低。
4、取消傳統軸封方式，避免了輸送介質的外泄，因此具有完全無泄露的顯著特點。
5、用滑動軸承替代常規電機滾動軸承，使泵具有運行特別平穩，振動噪音極低。
6、安裝檢修方便，無需拆動管路系統，只要拆下連接體螺母即可抽出全部轉子部件進行檢查和維修。
7、可根據使用要求即流量和揚程的需要進行泵的串、并聯運行方式。
G型屏蔽式管道泵主要用途
1、普通型供輸送清水及物理化學性質類似于清水的其他液體之用。介質使用溫度不超過80℃,適用于工業和城市給排水,高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套。特別適用對振動、噪音要求較高的場合,如地下泵房、空調制冷系統等。
2、熱水型主要供輸送溫度不超過160℃不含固體顆粒的軟水之用,適用于能源、冶金、化工、紡織、造紙以及賓館、飯店、浴室、鍋爐熱水增壓循環輸送及城市采暖系統循環等場合。
3、防腐型供輸送不含固體顆粒,具有腐蝕性,粘度類似于水的液體,適用于石油、化工、冶金、電力、造紙、食品、制藥和合成纖維等部門。
G型屏蔽式管道泵結構說明
該泵為機泵一體結構，整機主要由泵體、葉輪、聯接體、滑動軸承、定子、轉子、屏蔽套、電機殼等零部件組成。泵為立式單級單吸離心式，進出口在同一水平軸線上，口徑規格相同可直接象閥門一樣安裝在管路的任何部位上，裝卸極為方便，占地面積省。泵通過聯接體與電機成一體，軸承采用進口石墨浸漬樹脂復合軸承，電機定轉子各有屏蔽套進隔離。軸承采用流體本身介質作為潤滑劑及冷卻液，具有設計合理、運行可靠的特點。泵設有底座，可直接安裝在地基上，因該泵具有低噪音，無振動特點，安裝時無需加裝隔振器或隔振墊。
G型屏蔽式管道泵工作條件
1、介質必須為軟水、稀薄、不凝固、非易燃、不含固體顆粒及纖維的流體。
2、介質溫度普通型80℃,熱水型為120℃。
3、一般情況下系統工作壓力不超過1.2Mpa，進口壓力不小于0.5Mpa,特殊場合應事先與生產廠家聯系。
4、環境溫度不超過40℃，相對溫度不超過95%。

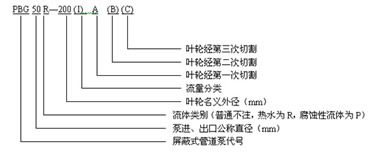

G型屏蔽式管道泵型號說明

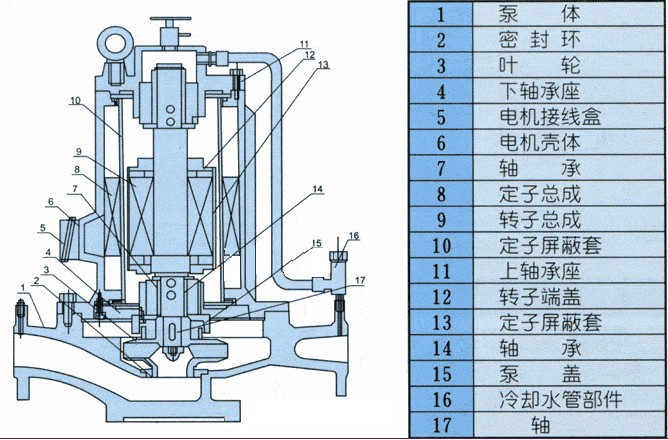

G型屏蔽式管道泵結構說明
結構見圖。該泵為機泵一體結構，整機主要由泵體、葉輪、聯接體、滑動軸承、定子、轉子、屏蔽套、電機殼等零部件組成。泵為立式單級單吸離心式，進出口在同一水平軸線上，口徑規格相同可直接象閥門一樣安裝在管路的任何部位上，裝卸極為方便，占地面積省。泵通過聯接體與電機或一體，軸承采用進口石墨浸漬樹脂復合軸承，電子定轉子各有屏蔽套進行隔離。軸承采用流體本身介質作為潤滑劑及冷卻液，具有設計合理、運行可靠的特點。泵設有底座，可直接安裝在地基上，因該泵具有低噪音，無振動特點，安裝時無需加裝隔振器或隔振墊。
G型屏蔽式管道泵性能參數
| 序號 | 型號 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必須汽蝕余量 | |
| m3/h | L/S | |||||||
| 1 | PBG40-100 | 6.3 | 1.75 | 12.5 | 54 | 1450 | 0.55 | 3.5 |
| 2 | PBG40-100A | 5.6 | 1.56 | 10 | 52 | 1450 | 0.37 | 3.5 |
| 3 | PBG40-125 | 6.3 | 1.75 | 20 | 46 | 1450 | 1.1 | 3.5 |
| 4 | PBG40-125A | 5.6 | 1.56 | 16 | 45 | 2900 | 0.75 | 3.5 |
| 5 | PBG40-160 | 6.3 | 1.75 | 32 | 40 | 2900 | 2.2 | 3.5 |
| 6 | PBG40-160A | 5.9 | 1.64 | 28 | 39 | 2900 | 1.5 | 3.5 |
| 7 | PBG40-160B | 5.5 | 1.53 | 24 | 38 | 2900 | 1.1 | 3.5 |
| 8 | PBG40-200 | 6.3 | 1.75 | 50 | 33 | 2900 | 4 | 3.5 |
| 9 | PBG40-200A | 5.9 | 1.64 | 44 | 31 | 2900 | 3 | 3.5 |
| 10 | PBG40-200B | 5.3 | 1.47 | 36 | 29 | 2900 | 2.2 | 3.5 |
| 11 | PBG40-250 | 6.3 | 1.75 | 80 | 28 | 2900 | 7.5 | 3.5 |
| 12 | PBG40-250A | 5.9 | 1.64 | 70 | 28 | 2900 | 5.5 | 3.5 |
| 13 | PBG40-250B | 5.5 | 1.53 | 60 | 27 | 2900 | 4 | 3.5 |
| 14 | PBG40-100(I) | 12.5 | 3.47 | 12.5 | 62 | 1450 | 1.1 | 3.5 |
| 15 | PBG40-100(I)A | 11 | 3.05 | 10 | 60 | 1450 | 0.75 | 3.5 |
| 16 | PBG40-125(I) | 12.5 | 3.47 | 20 | 58 | 1450 | 1.5 | 3.5 |
| 17 | PBG40-125(I)A | 11 | 3.05 | 16 | 57 | 1450 | 1.1 | 3.5 |
| 18 | PBG40-160(I) | 12.5 | 3.47 | 32 | 52 | 2900 | 3 | 3.5 |
| 19 | PBG40-160(I)A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 3.5 |
| 20 | PBG40-160(I)B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 3.5 |
| 21 | PBG40-200(I) | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 3.5 |
| 22 | PBG40-200(I)A | 11.7 | 3.25 | 44 | 45 | 2900 | 4 | 3.5 |
| 23 | PBG40-200(I)B | 10.6 | 2.94 | 36 | 44 | 2900 | 3 | 3.5 |
| 24 | PBG40-250(I) | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 3.5 |
| 25 | PBG40-250(I)A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 3.5 |
| 26 | PBG40-250(I)B | 10.8 | 3 | 60 | 37 | 2900 | 7.5 | 3.5 |
| 27 | PBG40-250(I)C | 10 | 2.78 | 52 | 36 | 2900 | 5.5 | 3.5 |
| 28 | PBG50-100 | 12.5 | 3.47 | 12.5 | 62 | 1450 | 1.1 | 3.5 |
| 29 | PBG50-100A | 11 | 3.05 | 10 | 60 | 1450 | 0.75 | 3.5 |
| 30 | PBG50-125 | 12.5 | 3.47 | 20 | 58 | 1450 | 1.5 | 3.5 |
| 31 | PBG50-125A | 11 | 3.05 | 16 | 57 | 1450 | 1.1 | 3.5 |
| 32 | PBG50-160 | 12.5 | 3.47 | 32 | 52 | 2900 | 3 | 3.5 |
| 33 | PBG50-160A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 3.5 |
| 34 | PBG50-160B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 3.5 |
| 35 | PBG50-200 | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 3.5 |
| 36 | PBG50-200A | 11.7 | 3.25 | 44 | 45 | 2900 | 4 | 3.5 |
| 37 | PBG50-200B | 10.6 | 2.94 | 36 | 44 | 2900 | 3 | 3.5 |
| 38 | PBG50-250 | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 3.5 |
| 39 | PBG50-250A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 3.5 |
| 40 | PBG50-250B | 10.8 | 3 | 60 | 37 | 2900 | 7.5 | 3.5 |
| 41 | PBG50-250C | 10 | 2.78 | 52 | 36 | 2900 | 5.5 | 3.5 |
| 42 | PBG50-100(I) | 25 | 6.94 | 12.5 | 69 | 1450 | 1.5 | 3.8 |
| 43 | PBG50-100(I)A | 22.3 | 6.19 | 10 | 67 | 1450 | 1.1 | 3.8 |
| 44 | PBG50-125(I) | 25 | 6.94 | 20 | 68 | 1450 | 3 | 3.8 |
| 45 | PBG50-125(I)A | 22.3 | 6.49 | 16 | 66 | 1450 | 2.2 | 3.8 |
| 46 | PBG50-160(I) | 25 | 6.94 | 32 | 63 | 1450 | 4 | 3.8 |
| 47 | PBG50-160(I)A | 23.4 | 6.5 | 28 | 62 | 1450 | 4 | 3.8 |
| 48 | PBG50-160(I)B | 21.6 | 6 | 24 | 58 | 1450 | 3 | 3.8 |
| 49 | PBG50-200(I) | 25 | 6.94 | 50 | 58 | 2900 | 7.5 | 3.8 |
| 50 | PBG50-200(I)A | 23.5 | 6.53 | 44 | 57 | 2900 | 7.5 | 3.8 |
| 51 | PBG50-200(I)B | 21.8 | 6.06 | 38 | 55 | 2900 | 5.5 | 3.8 |
| 52 | PBG50-250(I) | 25 | 6.94 | 80 | 50 | 2900 | 15 | 3.8 |
| 53 | PBG50-250(I)A | 23.4 | 6.5 | 70 | 50 | 2900 | 11 | 3.8 |
| 54 | PBG50-250(I)B | 21.6 | 6 | 60 | 48 | 2900 | 11 | 3.8 |
| 55 | PBG50-315(I) | 25 | 6.94 | 125 | 40 | 2900 | 30 | 3.8 |
| 56 | PBG50-315(I)A | 23.7 | 6.58 | 113 | 40 | 2900 | 22 | 3.8 |
| 57 | PBG50-315(I)B | 22.5 | 6.25 | 101 | 39 | 2900 | 18.5 | 3.8 |
| 58 | PBG50-315(I)C | 20.6 | 5.72 | 85 | 38 | 2900 | 15 | 3.8 |
| 59 | PBG65-100 | 25 | 6.94 | 12.5 | 69 | 1450 | 1.2 | 3.8 |
| 60 | PBG65-100A | 22.3 | 6.19 | 10 | 67 | 1450 | 1.1 | 3.8 |
| 61 | PBG65-125 | 25 | 6.94 | 20 | 68 | 1450 | 3 | 3.8 |
| 62 | PBG65-125A | 22.3 | 6.19 | 16 | 66 | 1450 | 2.2 | 3.8 |
| 63 | PBG65-160 | 25 | 6.94 | 32 | 63 | 1450 | 4 | 3.8 |
| 64 | PBG65-160A | 23.4 | 6.5 | 28 | 62 | 1450 | 4 | 3.8 |
| 65 | PBG65-160B | 21.6 | 6 | 24 | 58 | 1450 | 3 | 3.8 |
| 66 | PBG65-200 | 25 | 6.94 | 50 | 58 | 2900 | 7.5 | 3.8 |
| 67 | PBG65-200A | 23.5 | 6.53 | 44 | 57 | 2900 | 7.5 | 3.8 |
| 68 | PBG65-200B | 21.8 | 6.06 | 38 | 55 | 2900 | 5.5 | 3.8 |
| 69 | PBG65-250 | 25 | 6.94 | 80 | 50 | 2900 | 15 | 3.8 |
| 70 | PBG65-250A | 23.4 | 6.5 | 70 | 50 | 2900 | 11 | 3.8 |
| 71 | PBG65-250B | 21.6 | 6 | 60 | 49 | 2900 | 11 | 3.8 |
| 72 | PBG65-315 | 25 | 6.94 | 125 | 40 | 2900 | 30 | 3.8 |
| 73 | PBG65-315A | 23.7 | 6.58 | 113 | 40 | 2900 | 22 | 3.8 |
| 74 | PBG65-315B | 22.5 | 6.25 | 101 | 39 | 2900 | 18.5 | 3.8 |
| 75 | PBG65-315C | 20.6 | 5.72 | 85 | 38 | 2900 | 15.5 | 3.8 |
| 76 | PBG65-100(I) | 50 | 13.9 | 12.5 | 73 | 1450 | 3 | 4.2 |
| 77 | PBG65-100(I)A | 44.7 | 12.5 | 10 | 72 | 1450 | 2.2 | 4.2 |
| 78 | PBG65-125(I) | 50 | 13.9 | 20 | 72.5 | 1450 | 5.5 | 4.2 |
| 79 | PBG65-125(I)A | 45 | 12.5 | 16 | 71 | 1450 | 4 | 4.2 |
| 80 | PBG65-160(I) | 50 | 13.9 | 32 | 71 | 1450 | 7.5 | 4.2 |
| 81 | PBG65-160(I)A | 46.7 | 13 | 28 | 70 | 1450 | 7.5 | 4.2 |
| 82 | PBG65-160(I)B | 43.3 | 12 | 24 | 69 | 1450 | 5.5 | 4.2 |
| 83 | PBG65-200(I) | 50 | 13.9 | 50 | 67 | 2900 | 15 | 4.2 |
| 84 | PBG65-200(I)A | 47 | 13.1 | 44 | 66 | 2900 | 11 | 4.2 |
| 85 | PBG65-200(I)B | 43.5 | 12.1 | 38 | 65 | 2900 | 7.5 | 4.2 |
| 86 | PBG65-250(I) | 50 | 13.9 | 80 | 59 | 2900 | 22 | 4.2 |
| 87 | PBG65-250(I)A | 46.7 | 13 | 70 | 59 | 2900 | 18.5 | 4.2 |
| 88 | PBG65-250(I)B | 43.3 | 12 | 60 | 58 | 2900 | 15 | 4.2 |
| 89 | PBG65-315(I) | 50 | 13.9 | 125 | 54 | 2900 | 34 | 4.2 |
| 90 | PBG65-315(I)A | 46.5 | 12.9 | 110 | 54 | 2900 | 30 | 4.2 |
| 91 | PBG65-315(I)B | 44.5 | 12.4 | 100 | 53 | 2900 | 30 | 4.2 |
| 92 | PBG65-315(I)C | 41 | 11.4 | 85 | 51 | 2900 | 22 | 4.2 |
| 93 | PBG80-100 | 50 | 13.9 | 12.5 | 73 | 1450 | 3 | 4.2 |
| 94 | PBG80-100A | 44.7 | 12.4 | 10 | 72 | 1450 | 2.2 | 4.2 |
| 95 | PBG80-125 | 50 | 13.9 | 20 | 72.5 | 1450 | 5.5 | 4.2 |
| 96 | PBG80-125A | 45 | 12.5 | 16 | 71 | 1450 | 4 | 4.2 |
| 97 | PBG80-160 | 50 | 13.9 | 32 | 71 | 1450 | 7.5 | 4.2 |
| 98 | PBG80-160A | 46.7 | 13 | 28 | 70 | 1450 | 7.5 | 4.2 |
| 99 | PBG80-160B | 43.3 | 12 | 24 | 69 | 1450 | 5.5 | 4.2 |
| 100 | PBG80-200 | 50 | 13.9 | 50 | 67 | 2900 | 15.5 | 4.2 |
| 101 | PBG80-200A | 47 | 13.1 | 44 | 66 | 2900 | 11 | 4.2 |
| 102 | PBG80-200B | 43.5 | 12.1 | 38 | 65 | 2900 | 7.5 | 4.2 |
| 103 | PBG80-250 | 50 | 13.9 | 80 | 59 | 2900 | 22 | 4.2 |
| 104 | PBG80-250A | 46.7 | 13 | 70 | 59 | 2900 | 18.5 | 4.2 |
| 105 | PBG80-250B | 43.3 | 12 | 60 | 58 | 2900 | 15 | 4.2 |
| 106 | PBG80-315 | 50 | 13.9 | 125 | 54 | 2900 | 37 | 4.2 |
| 107 | PBG80-315A | 46.5 | 12.9 | 110 | 54 | 2900 | 30 | 4.2 |
| 108 | PBG80-315B | 44.5 | 12.4 | 100 | 53 | 2900 | 30 | 4.2 |
| 109 | PBG80-315C | 41 | 11.4 | 85 | 51 | 2900 | 22 | 4.2 |
| 110 | PBG80-100(I) | 100 | 27.8 | 12.5 | 76 | 1450 | 5.5 | 4.2 |
| 111 | PBG80-100(I)A | 89 | 24.7 |
10
|
74 | 1450 | 4 | 4.2 |
| 112 | PBG80-125(I) | 100 | 27.8 | 20 | 76 | 1450 | 11 | 4.2 |
| 113 | PBG80-125(I)A | 89 | 24.7 | 16 | 74 | 1450 | 7.5 | 4.2 |
| 114 | PBG80-160(I) | 100 | 27.8 | 32 | 76 | 1450 | 15 | 4.2 |
| 115 | PBG80-160(I)A | 93.5 | 26 | 28 | 74 | 1450 | 11 | 4.2 |
| 116 | PBG80-160(I)B | 86.6 | 24.1 | 24 | 72 | 1450 | 11 | 4.2 |
| 117 | PBG80-200(I) | 100 | 27.8 | 50 | 74 | 1450 | 22 | 4.2 |
| 118 | PBG80-200(I)A | 93.5 | 26 | 44 | 73 | 1450 | 18.5 | 5.5 |
| 119 | PBG80-200(I)B | 87 | 24.2 | 38 | 71 | 1450 | 15 | 5.5 |
| 120 | PBG100-100 | 100 | 27.8 | 12.5 | 76 | 1450 | 5.5 | 5.5 |
| 121 | PBG100-100A | 89 | 24.7 | 10 | 74 | 1450 | 4 | 5.5 |
| 122 | PBG100-125 | 100 | 27.8 | 20 | 76 | 1450 | 11 | 5.5 |
| 123 | PBG100-125A | 89 | 24.7 | 16 | 74 | 1450 | 7.5 | 5.5 |
| 124 | PBG100-160 | 100 | 27.8 | 32 | 76 | 1450 | 15 | 5.5 |
| 125 | PBG100-160A | 93.5 | 26 | 28 | 74 | 1450 | 11 | 5.5 |
| 126 | PBG100-160B | 86.6 | 24.1 | 24 | 72 | 1450 | 11 | 5.5 |
| 127 | PBG100-200 | 100 | 27.8 | 50 | 74 | 1450 | 22 | 5.5 |
| 128 | PBG100-200A | 93.5 | 26 | 44 | 73 | 1450 | 18.5 | 5.5 |
| 129 | PBG100-200B | 87 | 27.2 | 38 | 71 | 1450 | 15 | 5.5 |
| 130 | PBG125-100 | 160 | 44.4 | 12.5 | 82 | 1450 | 11 | 5.5 |
| 131 | PBG125-100A | 143 | 39.7 | 10 | 77 | 1450 | 7.5 | 5.5 |
| 132 | PBG125-125 | 160 | 44.4 | 20 | 80 | 1450 | 15 | 5.5 |
| 133 | PBG125-25A | 143 | 39.7 | 16 | 77 | 1450 | 11 | 5.5 |
| 134 | PBG125-160 | 160 | 44.4 | 32 | 78 | 1450 | 22 | 5.5 |
| 135 | PBG125-160A | 150 | 41.7 | 28 | 76 | 1450 | 18.5 | 5.5 |
| 136 | PBG125-1160B | 138 | 38.3 | 24 | 73 | 1450 | 15 | 5.5 |
| 137 | PBG125-200 | 160 | 44.4 | 50 | 77 | 1450 | 37 | 5.5 |
| 138 | PBG125-200A | 150 | 41.7 | 44 | 76 | 1450 | 30 | 5.5 |
| 139 | PBG125-200B | 138 | 38.3 | 37.5 | 75 | 1450 | 22 | 5.5 |
| 140 | PBG150-200 | 200 | 55.6 | 12.5 | 78 | 1450 | 15 | 5 |
| 141 | PBG150-200A | 179 | 49.7 | 10 | 76 | 1450 | 11 | 5 |
| 142 | PBG150-250 | 200 | 55.6 | 20 | 79 | 1450 | 18.5 | 5 |
| 143 | PBG150-250A | 184.4 | 51.2 | 17 | 78 | 1450 | 15 | 5 |
| 144 | PBG150-250B | 167 | 46.4 | 14 | 76 | 1450 | 11 | 5 |
| 145 | PBG150-315 | 200 | 55.6 | 32 | 78 | 1450 | 30 | 5.5 |
| 146 | PBG150-315A | 187 | 51.9 | 28 | 77 | 1450 | 22 | 5.5 |
| 147 | PBG150-315B | 173 | 48.1 | 24 | 76 | 1450 | 18.5 | 5.5 |
| 148 | PBG150-400 | 200 | 55.6 | 50 | 75 | 1450 | 45 | 5.5 |
| 149 | PBG150-400A | 187 | 51.9 | 44 | 74 | 1450 | 37 | 5.5 |
| 150 | PBG150-400B | 174 | 48.3 | 38 | 73 | 1450 | 30 | 5.5 |
| 151 | PBG150-400C | 160 | 44.4 | 32 | 71 | 1450 | 22 | 5.5 |
| 152 | PBG200-200 | 200 | 55.6 | 12.5 | 78 | 1450 | 15 | 5 |
| 153 | PBG200-200A | 179 | 49.7 | 10 | 76 | 1450 | 11 | 5 |
| 154 | PBG200-250 | 200 | 55.9 | 20 | 79 | 1450 | 18.5 | 5 |
| 155 | PBG200-250A | 184.4 | 51.2 | 17 | 78 | 1450 | 15 | 5 |
| 156 | PBG200-250B | 167 | 46.4 | 14 | 76 | 1450 | 11.1 | 5 |
| 157 | PBG200-315 | 200 | 55.6 | 32 | 78 | 1450 | 30 | 5.5 |
| 158 | PBG200-315A | 187 | 51.9 | 28 | 77 | 1450 | 22 | 5.5 |
| 159 | PBG200-315B | 173 | 48.1 | 24 | 76 | 1450 | 18.5 | 5.5 |
| 160 | PBG200-400 | 200 | 55.6 | 50 | 75 | 1450 | 45 | 5.5 |
| 161 | PBG200-400A | 187 | 51.9 | 44 | 74 | 1450 | 37 | 5.5 |
| 162 | PBG200-400B | 174 | 48.3 | 38 | 73 | 1450 | 30 | 5.5 |
| 163 | PBG200-400C | 160 | 44.4 | 32 | 71 | 1450 | 22 | 5.5 |
| 164 | PBG200-200(I) | 400 | 111.1 | 12.5 | 80 | 1450 | 22 | 5.5 |
| 165 | PBG200-200(I)A | 358 | 99.4 | 10 | 78 | 1450 | 18.5 | 5.5 |
| 166 | PBG200-250(I) | 400 | 111.4 | 20 | 80 | 1450 | 30 | 5.5 |
| 167 | PBG200-250(I)A | 358 | 99.4 | 16 | 78 | 1450 | 22 | 5.5 |
| 168 | PBG200-250(I)B | 322 | 89.4 | 13 | 75 | 1450 | 18.5 | 5.5 |
| 169 | PBG200-315(I) | 400 | 111.4 | 32 | 80 | 1450 | 55 | 5.5 |
| 170 | PBG200-315(I)A | 374 | 103.9 | 28 | 79 | 1450 | 45 | 5.5 |
| 171 | PBG200-315(I)B | 346 | 96.1 | 24 | 78 | 1450 | 37 | 5.5 |
| 172 | PBG200-400(I) | 400 | 111.4 | 50 | 81 | 1450 | 75 | 5.5 |
| 173 | PBG200-400(I)A | 374 | 103.9 | 44 | 80 | 1450 | 75 | 5.5 |
| 174 | PBG200-400(I)B | 346 | 96.1 | 30 | 78 | 1450 | 55 | 5.5 |
| 175 | PBG200-400(I)C | 320 | 88.9 | 32 | 76 | 1450 | 45 | 5.5 |
| 176 | PBG300-235 | 720 | 200 | 18 | 81 | 970 | 55 | 6 |
| 177 | PBG300-235A | 657 | 182.5 | 15 | 79 | 970 | 45 | 6 |
| 178 | PBG300-235B | 600 | 167 | 12.5 | 77 | 970 | 37 | 6 |
| 179 | PBG300-300 | 720 | 200 | 28 | 81 | 970 | 75 | 6 |
| 180 | PBG300-300A | 666 | 185 | 24 | 80 | 970 | 75 | 6 |
| 181 | PBG300-300B | 623 | 173.1 | 21 | 79 | 970 | 55 | 6 |
| 182 | PBG300-380 | 720 | 200 | 44 | 84 | 970 | 132 | 6 |
| 183 | PBG300-380A | 666 | 185 | 38 | 80 | 970 | 110 | 6 |
| 184 | PBG300-380B | 614 | 170.6 | 32 | 78 | 970 | 90 | 6 |
| 185 | PBG300-235(I) | 1080 | 300 | 40 | 82 | 970 | 160 | 6 |
| 186 | PBG300-235(I)A | 965 | 268.1 | 32 | 80 | 970 | 132 | 6 |
